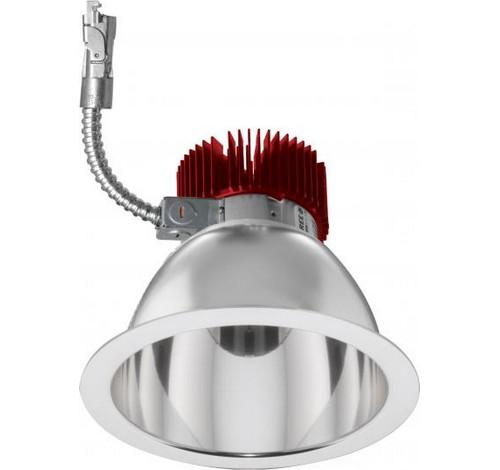

ELCO Lighting | 6" Reflector LED Light Engine Trims

ELCO Lighting | 6" Reflector LED Light Engine Trims
Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED technology.

Reflector Construction: Reflector is one piece, deep, self-flanged construction spun from .05” thick High
Grade Aluminum. Reflector allows for minimal glare and a strong glare cut-off.

Installation: Must be installed on a Laurel System frame with compatible lumen rating. Frames are available
for New Construction, Remodel and as a Retrofit Kit.

LED Technology:
* Extremely accurate Color Rendering Index of 93+ CRI.
* Efficacy of >90 lumens per watt.
* Lumen Maintenance of 50,000 hours L70 Life based on LM80 standardized test results.
* Superior Thermal Management by utilizing ELCO Red heat sink.
* Instant On to Full Brightness technology.
* No LED pixilation.

SPECIFICATIONS:
6" Reflector LED Light Engine Trim
1250 lm lumens
3000K CCT
12.8W Watts
60° Beam Angle

Model: E610L1230H2
